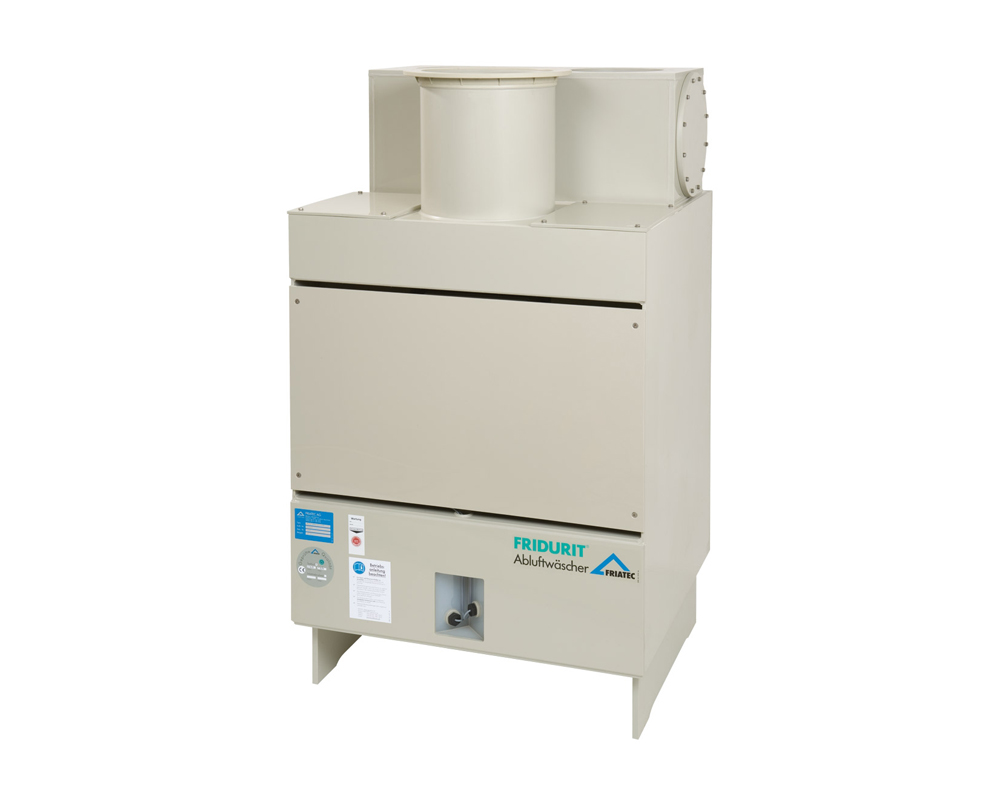

FRIATEC ACID WASH DEVICE C180
GENEL BİLGİLER

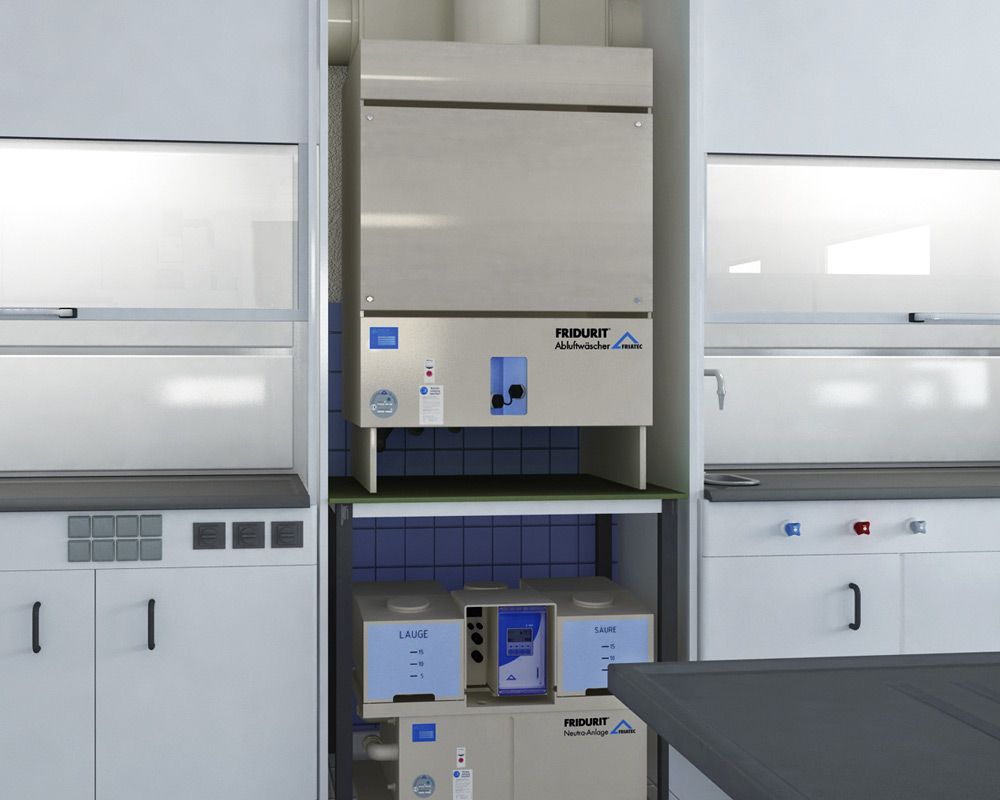

- Placed next to fume hoods.
- Ideal solution for two fume hood connections, saving space and energy.
- Integrated fan.
- Uses tap water as washing liquid.
- All parts easy to attach and detach.
- Service friendly.
Up to 97% absorption efficiency thanks to compact design!
TEKNİK BİLGİLER
| C180 ACID WASH SYSTEM | |
| Applications | Mounted next to fume hoods or as free standing units. |
| Materials used (On surfaces that contact the environment) |
Body and Spray Nozzle: Polypropylene, Connection Pieces: PVC-U, Gaskets: EPDM / PTFE |
| Ventilation Data | |
| Air Flow Rate m³/h | 600 / 1800 |
| Pressure Loss Pa | 160 / 1020 |
| Air Input | Block Flange ø250 mm |
| Air Output | 1 Air Output Channel ø315 mm |
| Dimensions and Weight: | |
| Width | 850 mm |
| Depth | 750 mm |
| Height | 1535 mm |
| Water Tank Volume | Approx. 70 l |
| Empty Weight | 120 kg |
| Full Weight | 190 kg |
| Electrical Controls: | |
| Control Unit | Programmable PLC circuit, Key unit for spray nozzles, Key unit for choosing engine running mode, Operation module with keyboard |
| Power Source | Three Phase 400/230 Volt, 50 Hz, 3L/N/PE, 0.55 kW. |
| Level Control | For minimum and maximum levels 2 level switches |
| Scrubber Liquid Change | Time dependent control That can be set with large intervals |
| Protection Class | Engine and Front Control Unit: IP 54, Back Control Unit: IP 40 |
