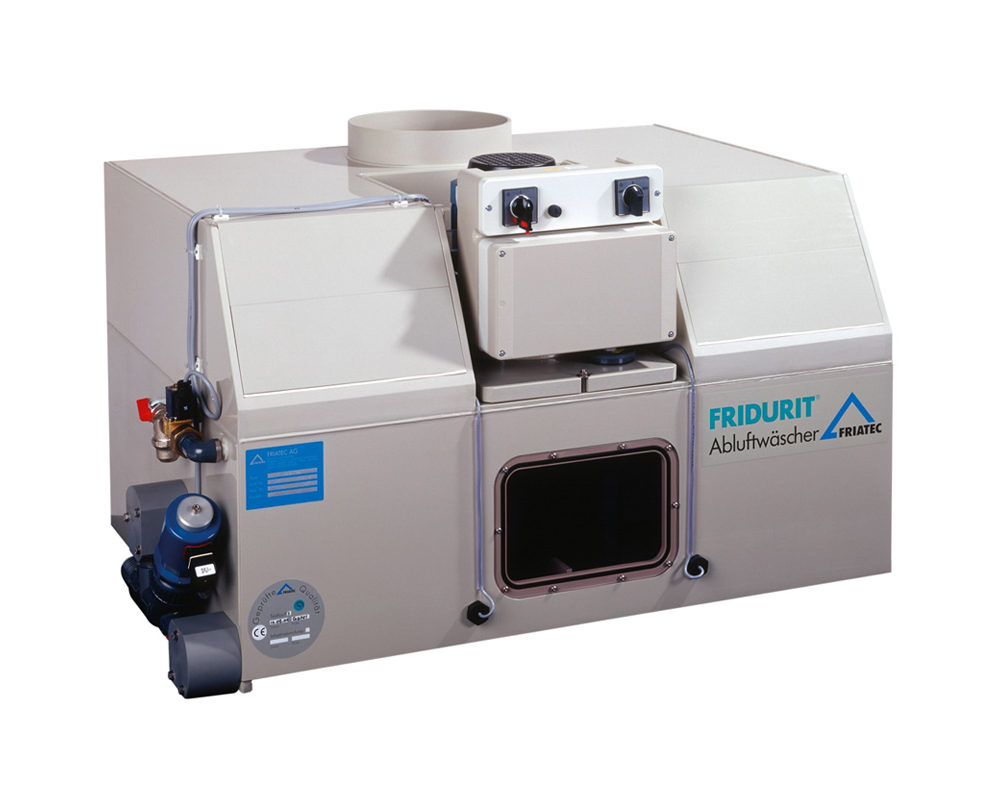

FRIATEC ACID WASH DEVICE C54
GENEL BİLGİLER

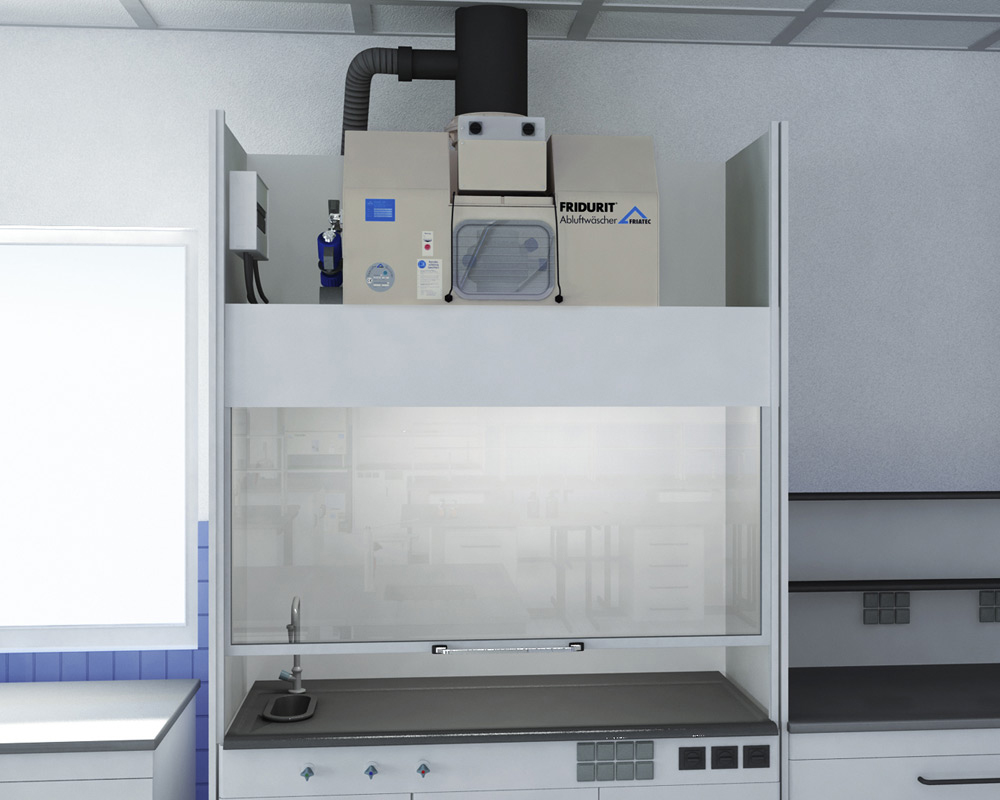

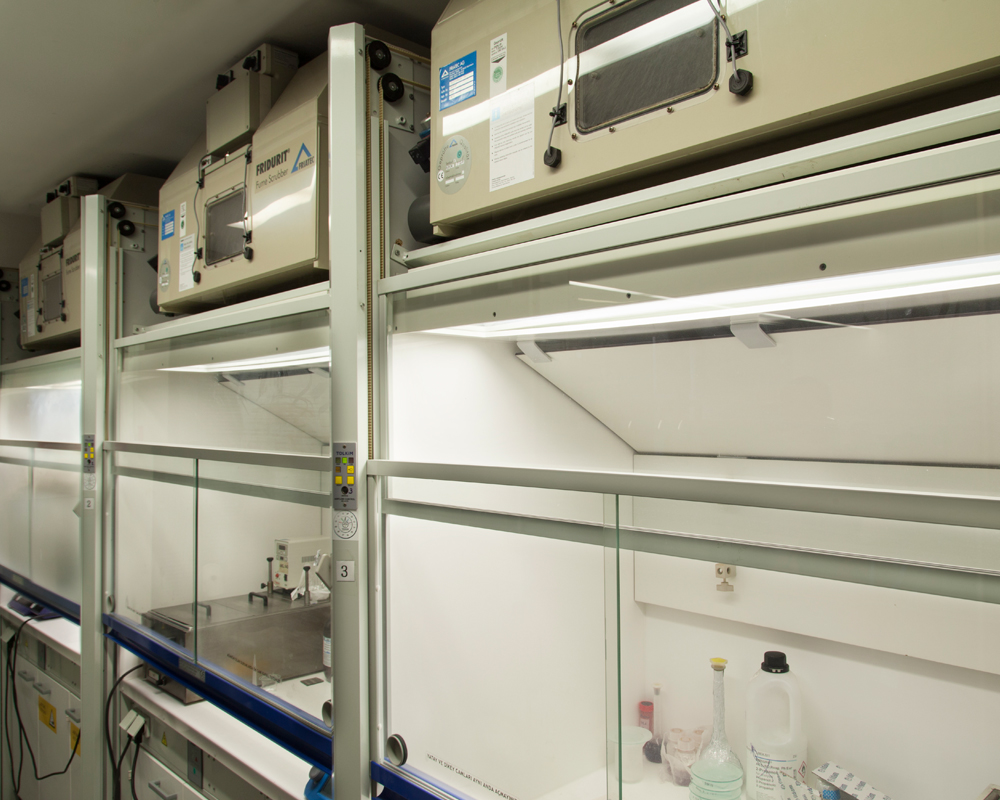

- Designed for laboratory fume hoods.
- Placed directly on the fume hood.
- Easily integrated to existing air suction systems.
- Uses tap water as washing liquid.
- All parts easy to attach and detach.
- Service friendly.
Up to 97% absorption efficiency thanks to compact design!
TEKNİK BİLGİLER
| C54 ACID WASH SYSTEM | |
| Applications | Mounted on the fume hood ceiling. |
| Materials Used (On surfaces that contact the environment) |
Body and spray nozzle: Polypropylene, Connection Pieces: PVC-U, Gaskets: EPDM / PTFE |
| Ventilation Data | |
| Air Flow Rate m³/h | 480 / 900 |
| Pressure Loss Pa | 200 / 530 |
| Air Input | 2 Air Output Channels ø200 mm |
| Air Output | 1 Air Output Channel ø250 mm |
| Dimensions and Weight: | |
| Width | 950 mm |
| Depth | 710 mm |
| Height | 550 mm |
| Water Tank Volume | Approx. 45 l |
| Empty Weight | 90 kg |
| Full Weight | 135 kg |
| Electrical Controls: | |
| Control Unit | Programmable PLC circuit, Key unit for spray nozzles, Key unit for choosing engine running mode, Operation module with keyboard |
| Power Source | Three Phase 400/230 Volt, 50 Hz, 3L/N/PE, 0.55 kW. |
| Level Control | For minimum and maximum levels 2 level switches |
| Scrubber Liquid Change | Time dependent control That can be set with large intervals |
| Protection Class | Engine and Front Control Unit: IP 54, Back Control Unit: IP 40 |
