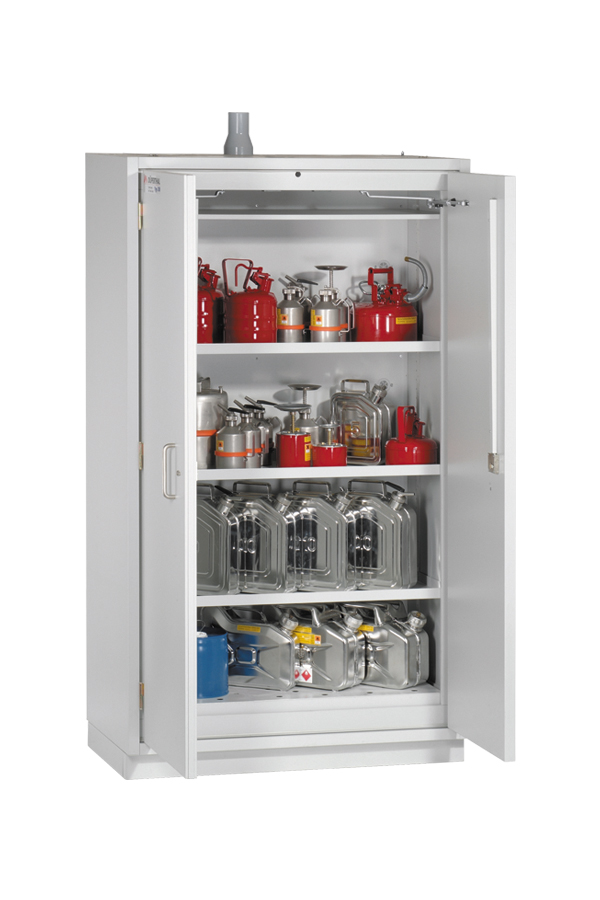

DUPERTHAL FLAMMABLE CHEMICAL SAFETY CABINET TYPE 30
GENEL BİLGİLER
- Provides sufficient safety with 30 minute fire resistance according to the EN 14 470-1 standard.
- TÜV certified according to DIN EN 14 727 (laboratory furniture standard).
- Guaranteed user friendliness and long service life with TÜV “High Quality” certificate.
- 3 adjustable shelf systems and 1 bottom collection tray are standard.
- Air suction and air feed channels at every shelf level.
- Each shelve level is grounded according to the TRBS 2153 and BRG 132 standards.
- Doors close automatically in case of fire.
- Ergonomic lock system at the handle level.
- Ease of use with double winged door that can be opened with one hand.
- The cabinet can be leveled from the inside and the outside easily with adjustable feet and can be moved easily with a forklift from the front or the sides.
- European Union GS, CE approved.
TEKNİK BİLGİLER

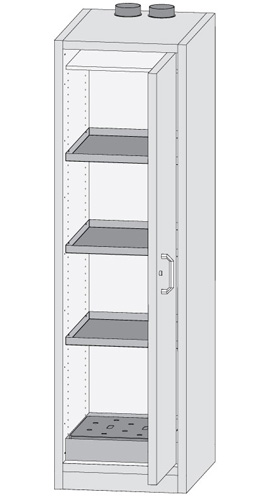

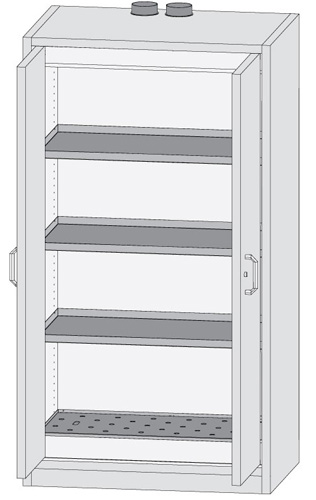

| BASIC standard XL | BASIC standard M | |
 |
 |
|
| Details | 3 storage shelves, 1 bottom collection tray and plinth | 3 storage shelves, 1 bottom collection tray and plinth |
| Dimensions | ||
| External dimensions [mm] (width x depth x height) |
1195 x 595 x 2075 | 595 x 595 x 2075 |
| Internal dimensions [mm] (width x depth x height) |
1119 x 470 x 1600 | 519 x 470 x 1600 |
| Weight [kg] | 278 | 147 |
| Storage capacity / surface area approx. | ||
| [400 ml. / 11 oz] [1,0 lt. / 0,26 gal] [1,0 lt. / 0,26 gal] [2,5 lt. / 0,66 gal] |
120 spray cans 47 cans 55 lab glass bottles 22 lab glass bottles |
53 spray cans 19 cans 24 lab glass bottles 9 lab glass bottles |
Optional Products:
- Movable drawer system.
- Additional storage shelves.
- Smart entrance system that prevents unauthorized access.
