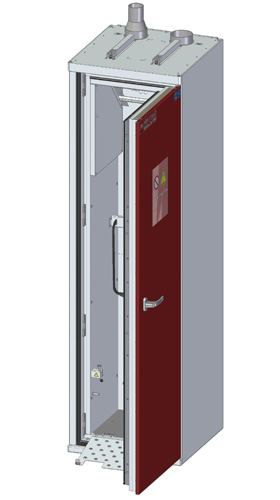

DUPERTHAL GAS TANK SAFETY CABINETS TYPE 90
GENEL BİLGİLER
- Provides maximum safety with 90 minute fire resistance according to the EN 14 470-2 standard.
- TÜV certified according to DIN EN 14 727 (laboratory furniture standard).
- Guaranteed user friendliness and long service life with TÜV “High Quality” certificate.
- Optimum convenience with door opening up to 170°.
- Optimum inner height specially designed for easy installation and use of gas tanks.

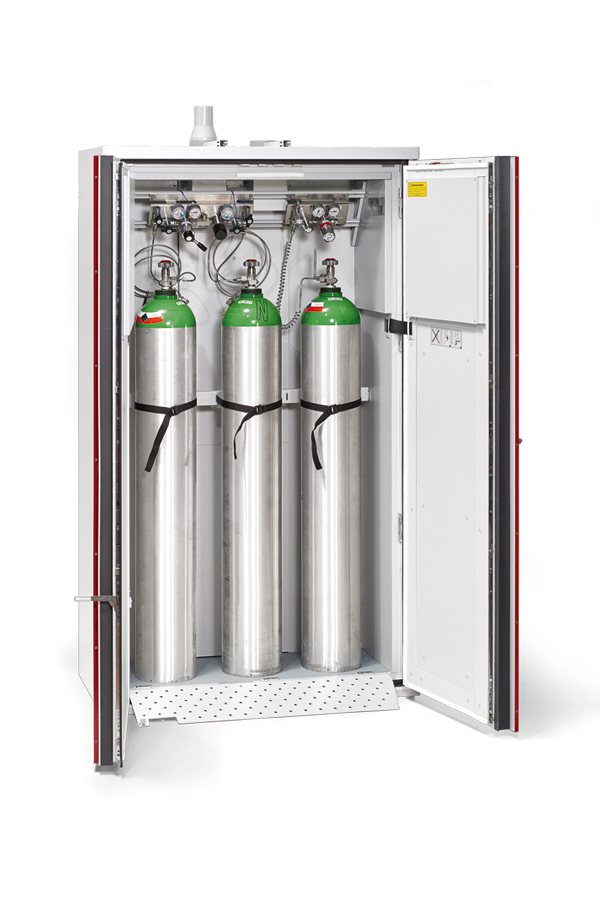

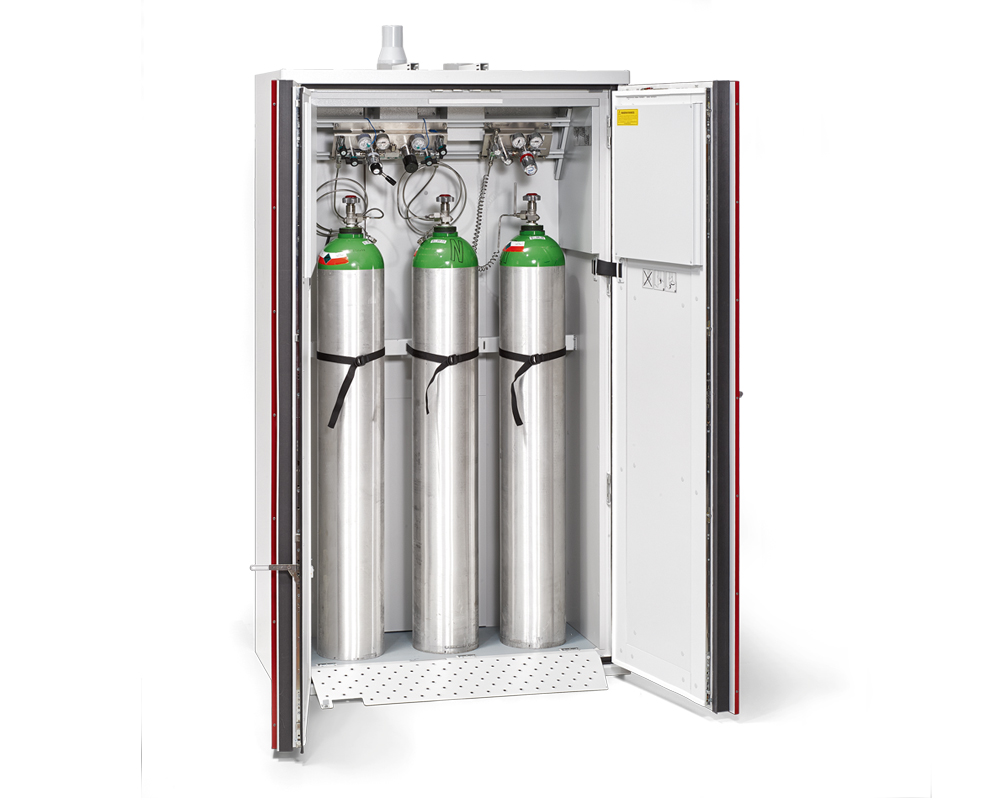

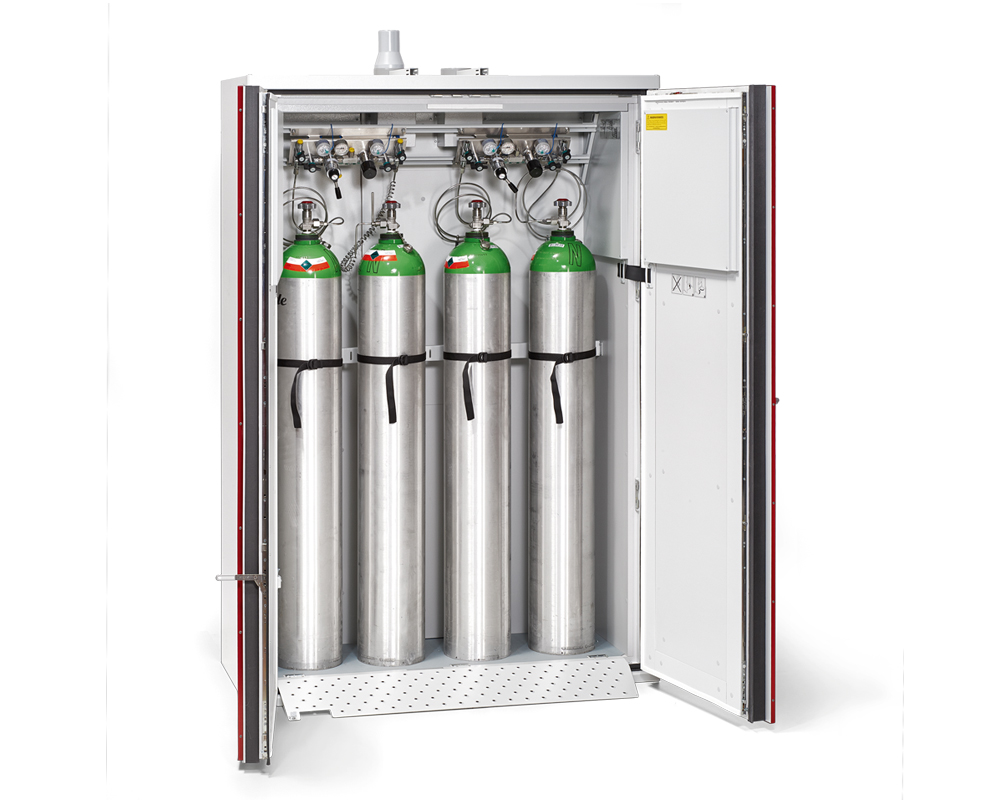

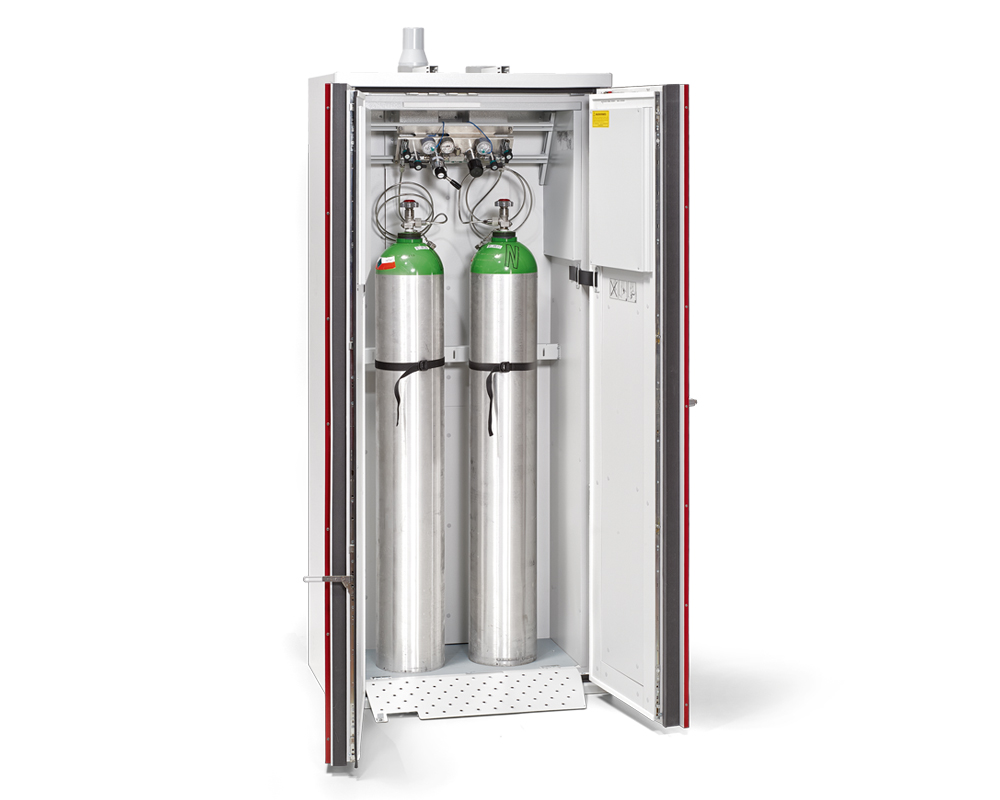

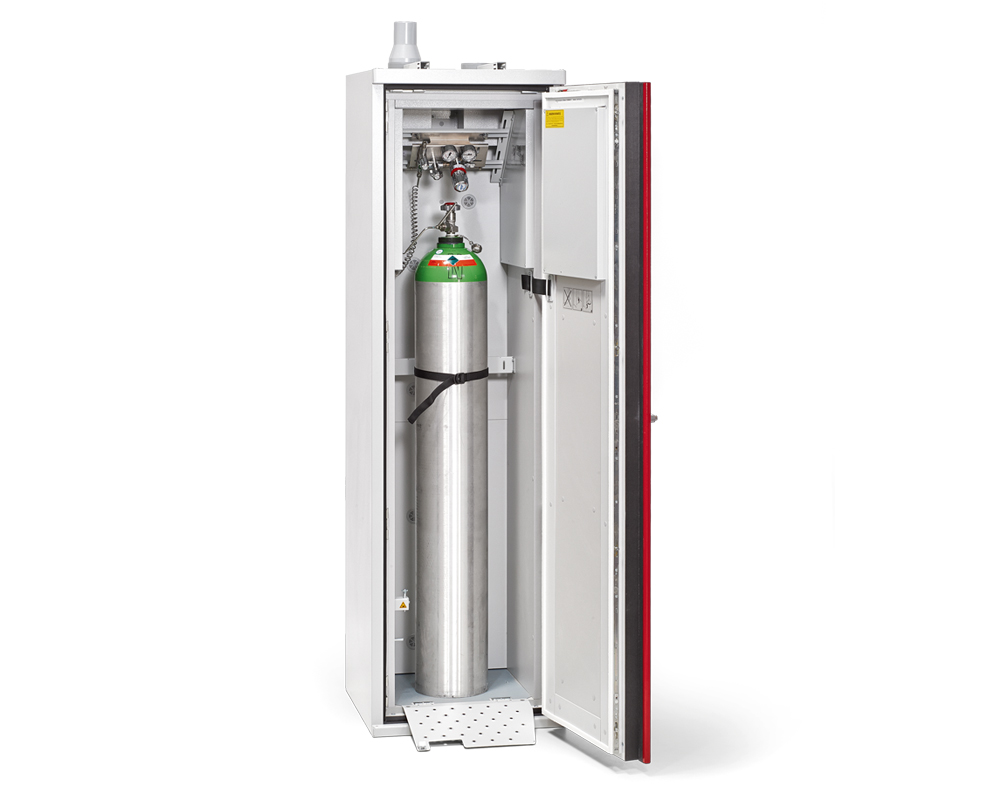

- Special rail system for fastening tank regulators and security belts for fastening tanks are standard.
- The ceiling has predrilled holes for pipes and cables that allow secure connections without additional insulation and parts.
- Folding ramp offers ease of loading and unloading tanks.
- Ergonomic lock system at the handle level.
- The cabinet can be leveled easily with the adjustable feet.
- European Union GS, CE approved.
TEKNİK BİLGİLER

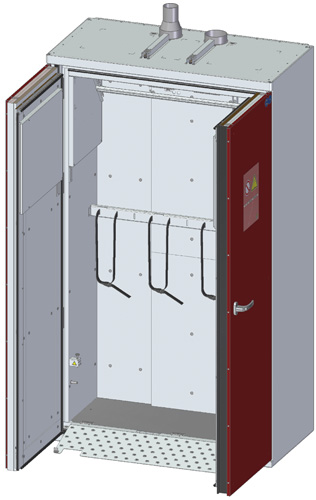

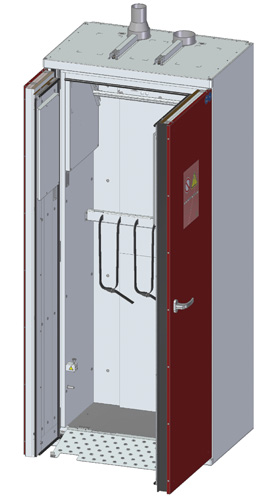

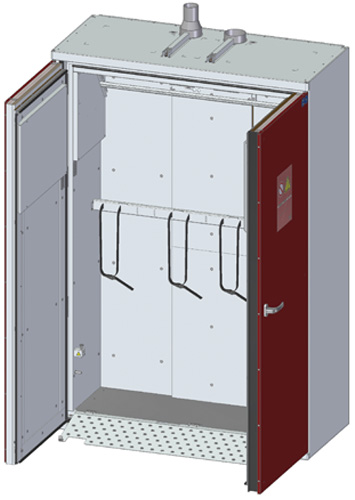

| SUPREME plus M | SUPREME plus L | SUPREME plus XL | SUPREME plus XXL | |
 |
 |
 |
 |
|
| Details | 1 tank support, 2 fastening belts, 2 horizontal installation rails and folding ramp |
1 tank support, 3 fastening belts, 2 horizontal installation rails and folding ramp |
1 tank support, 4 fastening belts, 2 horizontal installation rails and folding ramp |
1 tank support, 4 fastening belts, 2 horizontal installation rails and folding ramp |
| Dimensions | ||||
|
External dimensions [mm]
(width x depth x height)
|
595 x 610 x 2070 | 895 x 610 x 2070 | 1195 x 610 x 2070 | 1395 x 610 x 2070 |
|
Internal dimensions [mm]
(width x depth x height)
|
430 x 388 x 1826 | 730 x 404 x 1826 | 1030 x 404 x 1826 | 1230 x 404 x 1826 |
| Weigh [kg] | 348 | 477 | 595 | 680 |
|
Storage capacity /surface area approx. – Volume / Æ
|
||||
| [10 l / 140 mm] [50 l / 229 mm] |
2 pressurized gas tanks 1 pressurized gas tanks |
4 pressurized gas tanks 2-3 pressurized gas tanks |
6 pressurized gas tanks 3-4 pressurized gas tanks |
8 pressurized gas tanks 4 pressurized gas tanks |
Optional products
- Side panel loading shelf that offers additional space for storing smaller tanks (10 l etc.) and optimal functionality for employees.
- Tank shelves that are especially fit for safe storage and use of ECOCYL pressurized tanks.
- Smart entrance system that prevents unauthorized access.
