TOLKİM OUTDOOR GAS TANK CABINETS
GENEL BİLGİLER

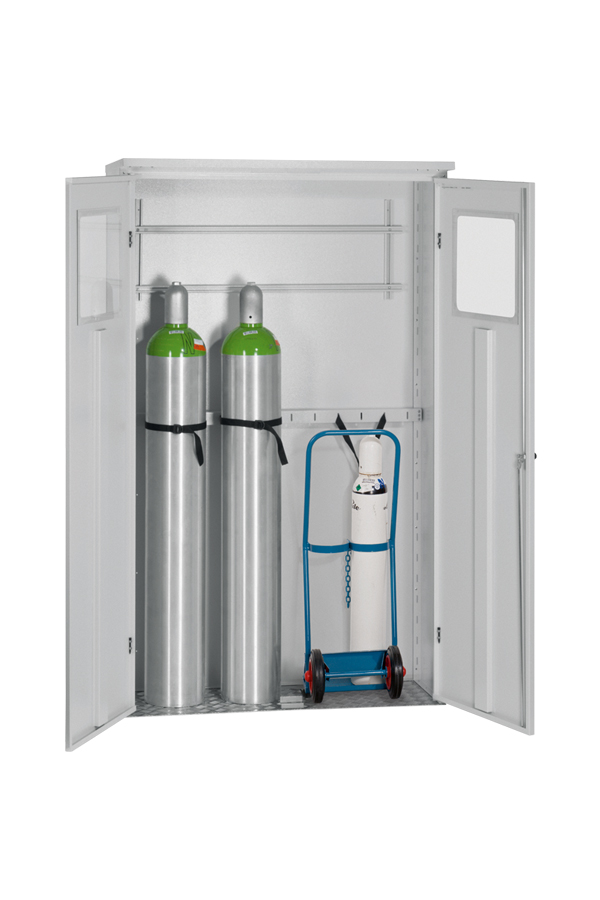

- For outdoor storage of pressurized gas tanks.
- Made of highly corrosion resistant epoxy static paint coated galvanized sheet steel.
- Optimum inner height, specially designed for easy installation and use of gas tanks.
- Special rail system for fastening tank regulators and security belts for fastening tanks are standard.
- Cabinet ceiling accommodates pipe and cable installation.
- 3 directional lock mechanism at the handle level.
- Can be mounted to the floor and be grounded.
- Ventilation holes and observation window are standard according to TRGS.
TEKNİK BİLGİLER

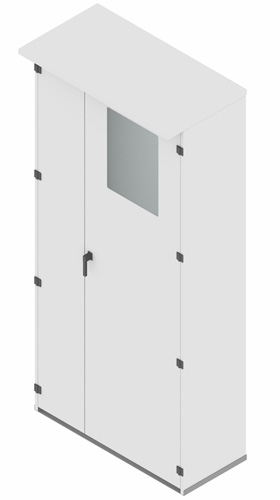

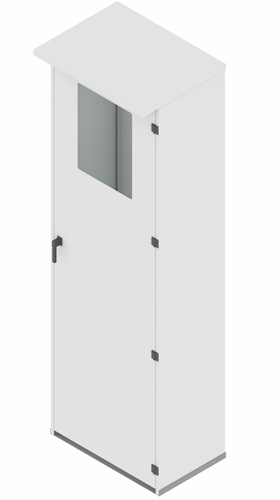

| M 2 | L 2 | |
 |
 |
|
| Details | 1 tank supports, 2 fastening chains, 2 horizontal installation rails |
1 tank support, 3 fastening chains, 2 horizontal installation rails |
| Dimensions | ||
|
Width x depth x height [mm]
|
650 x 400 x 2050 | 950 x 400 x 2050 |
|
Weight [kg]
|
85 | 103 |
|
Storage capacity / surface area approx. - Volume / Æ
|
||
| [50 l / 229 mm] | 2 pressurized gas tanks | 3 pressurized gas tanks |
Optional products
- Side panel loading shelf that offers additional space for storing smaller tanks (10 l etc.) and optimal functionality for employees.
